Carbon Fiber Drone Rack Secures Drone Structural Safety

2026-04-16 15:10:30

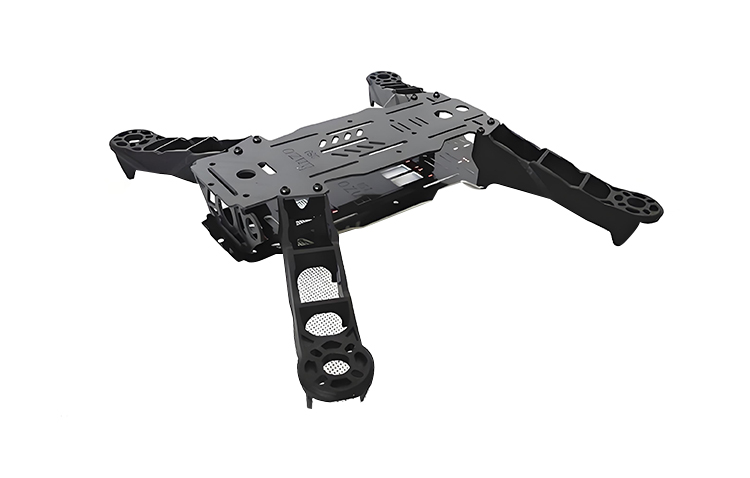

Drones endure complex dynamic loads during flight, including motor vibrations, airflow disturbances, emergency maneuvers, and unexpected impacts. Structural safety is the primary prerequisite for reliable drone flight. The Carbon fiber drone rack, leveraging the exceptional specific strength and fatigue resistance of carbon fiber, provides a solid foundation for the airframe starting from the material itself. Compared to traditional plastic racks that are prone to aging and brittleness, or metal racks susceptible to fatigue and deformation, carbon fiber racks maintain their complete geometric integrity under long-term high-frequency vibrations and sudden impacts, effectively reducing the risk of in-flight disintegration or detachment of critical components. With safety as the bottom line, carbon fiber racks are becoming an indispensable structural safeguard for industrial and consumer drones.

Impact Resistance: Energy Absorption and Load Distribution

During takeoff, landing, or accidental collisions, the drone rack is subjected to instantaneous impact forces. Carbon fiber racks offer excellent impact toughness, quickly dispersing energy along the fiber weave direction upon impact to avoid stress concentration and fracture. Even if surface scratches or minor damage occur, the interlaminar bonding of carbon fiber prevents crack propagation, preserving overall load-bearing capacity. In contrast, plastic racks tend to become brittle at low temperatures, while metal racks may suffer permanent dents and residual internal stresses. This “damage tolerance” characteristic of carbon fiber racks provides additional safety margin for drones operating in complex environments.

Fatigue Resistance and Long-Term Stability: Eliminating Hidden Failures

With every drone flight, the rack experiences cyclic alternating loads. Traditional materials may accumulate micro-cracks over long-term use, eventually leading to sudden failure. Carbon fiber has an extremely high fatigue limit, showing virtually no fatigue damage within the typical vibration frequency and amplitude ranges of drones. This means that after hundreds or even thousands of flight cycles, the stiffness and strength of a carbon fiber rack remain at factory levels. This long-term stability eliminates safety hazards caused by material aging, making it especially suitable for high-intensity repetitive operations such as automated inspection and logistics delivery. Users do not need to frequently replace the rack, reducing the probability of accidents due to structural degradation.

Enhanced Safety at Joints: Precision Embedment and Stress Distribution

The weak points in drone rack safety often occur at the connections between arms and the center plate, as well as at the interfaces between motor mounts and arms. Carbon fiber racks allow pre‑embedding of metal nuts, integrally molded reinforcement ribs, or locally thickened layups during the design phase, minimizing stress concentration in joint areas. Compared to post‑machined threads in plastic or metal, the pull‑out and torque resistance of carbon fiber pre‑embedded inserts are significantly stronger, resisting loosening or stripping due to vibration. Additionally, carbon fiber racks can be designed with gradual stiffness transitions, avoiding abrupt stress changes at interfaces. These design details directly enhance the connection reliability between the power system and the airframe, preventing motor detachment or arm separation during flight.

Safety Performance in Emergency Scenarios: Retaining Critical Functions After a Crash

Drones may lose control and crash due to strong winds, battery failure, or signal loss. In such emergency scenarios, carbon fiber racks exhibit unique protective capabilities. The high rigidity of a carbon fiber rack absorbs most of the ground impact energy, protecting the flight controller, battery, and navigation modules on the center plate from direct crushing. Even if an arm breaks, the fracture surface typically shows fiber pull‑out rather than sharp fragments, reducing secondary damage to surrounding electronic components. More importantly, carbon fiber racks are non‑conductive, so they do not cause short circuits or sparks when striking power lines or electrical equipment, lowering the risk of secondary hazards. This safety feature is especially valuable for drones operating in populated areas or hazardous environments.

Environmental Adaptability: Resisting Corrosion and Aging, Preventing Structural Degradation

Moisture, salt spray, chemical gases, and UV radiation can cause metal racks to rust and plastic racks to chalk, thereby eroding structural safety margins. Carbon fiber racks possess inherent chemical inertness and UV resistance, suffering no material property degradation in humid, coastal, or industrial pollution environments. Agricultural spraying drones are in long‑term contact with pesticides and fertilizers — carbon fiber rack surfaces do not corrode or swell. Maritime inspection drones resist salt spray for years while maintaining original strength. This all‑environment adaptability ensures that the rack maintains the designed safety factor throughout its entire service life, without silently losing load‑bearing capacity due to environmental factors.

Quality Control and Consistency: Traceable Layup Processes

Structural safety depends on product consistency and inspectability. Carbon fiber racks are manufactured using compression molding or vacuum processes, cured under controlled conditions, with traceable fiber volume fractions, layup sequences, and curing degrees for each batch. Non‑destructive testing methods such as ultrasonic scanning can screen for internal voids or delamination defects, ensuring that every rack leaving the factory meets design safety standards. In contrast, injection‑molded plastic racks may contain voids or sink marks, while metal racks may retain welding stresses. The industrial quality control system for carbon fiber racks provides drone manufacturers with a verifiable, trustworthy foundation for structural safety.
