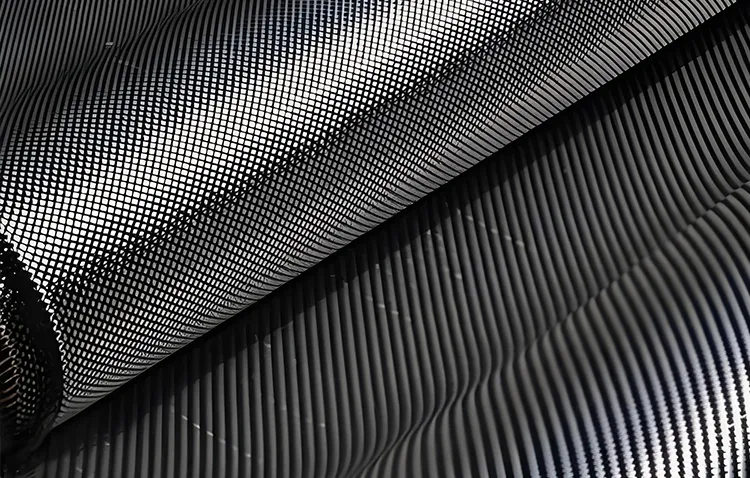

Unidirectional carbon fiber cloth is a high-performance composite material, which is made of carbon fiber filaments arranged in a single direction and bonded by high-quality resin. It has excellent tensile strength in the direction of fiber arrangement, and is widely used in structural reinforcement, aerospace, automotive and other fields that require high load-bearing capacity.

Material

The product is made of high-strength T700/T800 grade carbon fiber filaments and low-viscosity epoxy resin. The carbon fiber filaments have high modulus, uniform diameter and strong toughness, and the epoxy resin has good adhesion and curing performance, which effectively ensures the overall bonding strength and structural stability of the unidirectional Carbon Fiber Cloth.

Features & Advantages

It has outstanding directional mechanical properties, and the tensile strength in the main fiber direction can reach more than 3500MPa, which is far higher than that of traditional composite fabrics. The unidirectional carbon fiber cloth is light in weight, with a surface density of 100-800g/m², which can reduce the overall weight of the structure while enhancing the load-bearing capacity. It also has good corrosion resistance and fatigue resistance, and can maintain stable performance in harsh environments such as humidity and chemical corrosion.

Packaging & Transportation

The packaging adopts moisture-proof PE film wrapping + thickened waterproof carton, and the cloth is rolled and packed with a paper tube core to prevent folding and damage. Desiccant is placed in the carton to avoid moisture absorption and performance degradation. Transportation adopts professional logistics with shock-proof and moisture-proof measures to ensure the product is intact during transportation.

Model Parameters & Customization

We provide conventional standard unidirectional carbon fiber cloth, with surface density ranging from 100g/m² to 800g/m², width from 1000mm to 1500mm, and fiber direction accuracy ≥98%. In addition, we offer personalized customization services, including carbon fiber grade, surface density, width, resin content and fiber direction customization, to meet the specific needs of different application scenarios.

Product FAQ

Q1: What is the minimum order quantity?

A1: The minimum order quantity standard varies with different product models and specifications. For specific details, please contact us by email for consultation.

Q2: What is the quality guarantee period of the product?

A2: The quality guarantee period is generally one year from the date of delivery.

Q3: How long is the delivery time?

A3: The delivery time is usually 30 days or more, depending on the order quantity and customization requirements.

Why Choose Us？

1、Strong R&D Capability

We have built a professional R&D team focusing on carbon fiber material modification, molding process optimization and product lightweight design. With a number of invention patents and utility model patents, we continuously break through technical bottlenecks of high-performance carbon fiber products, meeting the strict technical requirements of aerospace, industrial equipment, high-end consumer goods and other fields.

2、Full-Process Production Capacity

We are equipped with a complete set of production equipment including autoclave, compression molding, pultrusion, winding and CNC precision machining, covering the whole process from raw material processing to finished product customization. We support both standardized mass production and custom production based on drawings or samples, balancing production efficiency and product precision.

3、Reliable Product Quality Assurance

We implement strict full-process quality control from raw material selection, production inspection to finished product performance testing. Each product features lightweight & high strength, high & low temperature resistance, corrosion resistance, fatigue resistance and dimensional stability, ensuring stable and reliable performance.

4、Comprehensive Customization Service System

According to different industry customer needs, we provide one-stop services from product design, process development and sample trial production to mass production. We respond quickly to personalized customization requirements and adapt to diverse application scenarios.

Who We Are？

Wuxi Guangfu Supply Chain Co., Ltd. is a high-tech enterprise integrating R&D, production, customized processing, sales and technical services of high-performance carbon fiber materials. With years of deep expertise in the carbon fiber composite industry, we focus on providing global customers with lightweight, high-strength and corrosion-resistant total carbon fiber solutions. As a core supplier in the industry, we have full-process production capacity and professional customized service capabilities.

Relying on independent R&D technologies and an advanced production system, the company has built a complete industrial chain covering carbon fiber precursor application, prepreg production, and processing of Carbon fiber plates, tubes, special-shaped parts and structural parts. We own a standardized production base, a professional R&D team and a complete quality control system. The company has obtained ISO9001 quality management system certification, EU CE certification and many other qualifications. Our products meet international industry standards and are exported to many countries and regions around the world.
